In the world of "If you know things, you can do things," I present to you a simple guitar amplifier.
Use case for this project was born out of my daughter's (KK4ECV) return home from college. While she has a small amp in her barracks room, she wanted a portable version for the road.
We toyed with several ideas and designs in the weeks before her return. I wanted to put everything in a small project box. But that size only accommodated a small 8 ohm project speaker. Didn't sound too impressive. Around that time I had recalled an earlier trip to Total Wine. They have a walk-in humidor...a feature of which are empty cigar boxes for take away of a handful of cigars. I grabbed several of the wood boxes for this and future projects.
The amp circuit is a simple LM386. I used film caps as they are purported to provide better audio fidelity. I don't know if that's true, but they're the only parts I bought. The rest of the bits in pieces were in my parts boxes.
I etched the board. My daughter soldered all but the LM386. While we both wanted a smaller form factor, both of us felt that a single 32 ohm speaker I took from a garbage picked boombox sounded the best. We opted to forgo a variable pot as the only one in the parts bin was not sufficiently linear.
I'm in the process of closing on a small cabin/cottage up in NH. My use case/requirement is to build inexpensive system to monitor the site/structure when I'm out of town. Of note, the system must be:
Inexpensive ($15-25) and make use of as many parts on hand as possible
Capture video and other telemetry (temp)
Able to push data remote, as in beyond the local network
Operate off cell data or WiFi (understanding that cell data will be difficult if pushing video)
Relatively easy to configure
Engineering Steps
After some initial tinkering and prototyping, I figured I'd adopt the following approach:
Let's Build
1. Build prototype and determine board type.
First step is always research. I spent hours considering board types (Arduino, Particle, Raspberry Pi) since I have examples of all of these. I eliminated Arduino early in the game as that solution required additional boards for communications, namely WiFi. My Photon Particle boards came in second. They are about 5+ years old and required some work but they might make due for the telemetry portion of the project. They do not, however, have sufficient processing power to handle video. This left me with the Raspberry Pi. I have several running around the house: Build-A-Pi for Winlink, another for tracking radiosondes launched out of IAD, and another running 24/7 as a FightAware PiAware device.
Now, I looked at potentially repurposing the radiosondes receiver since that use is periodic. [Note, I wanted to use this as a project to not only track sondes, but estimate path and retrieve the sondes that might land on terra firma. Still haven't been able to get to this.] There is a Raspberry Pi image specifically devoted to home automation. I burned the Home Assistant image several times but could not get it running.

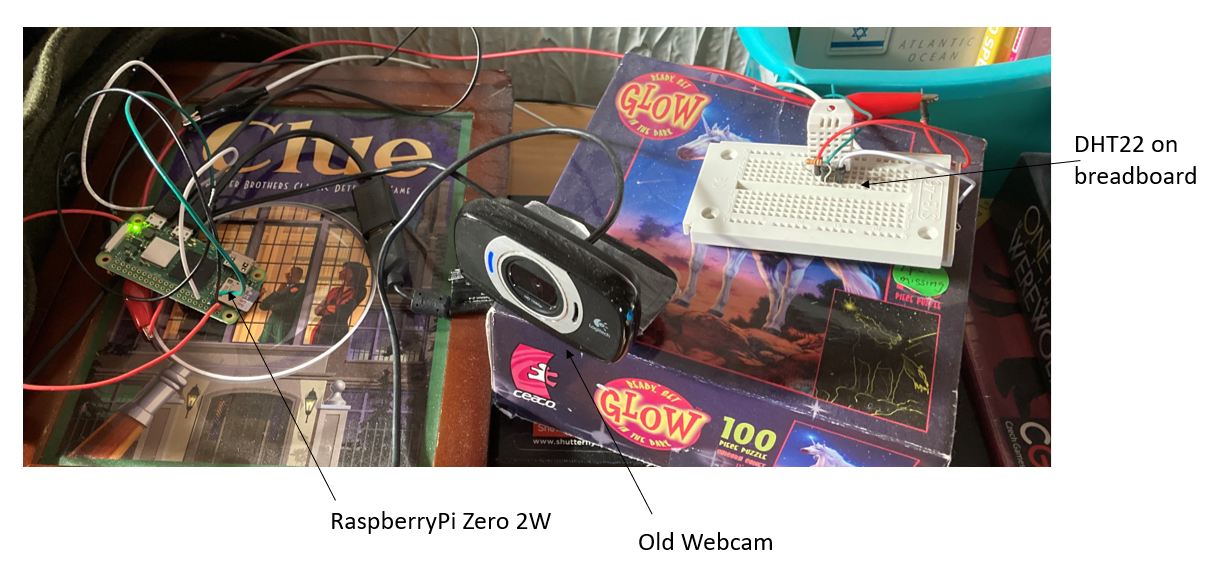

Instead I bought two Raspberry Pi Zero 2W's. These were, by far, the easiest to configure with the most avail code examples that I could borrow. Plus, the form factor was right on the money.
Raspberry Pi Zero 2W
2. Build video capture app on one board. Test.
I reviewed and tested several applications and images. The most promising, ContaCam seemed only to work with Windows and/or full Linux images.

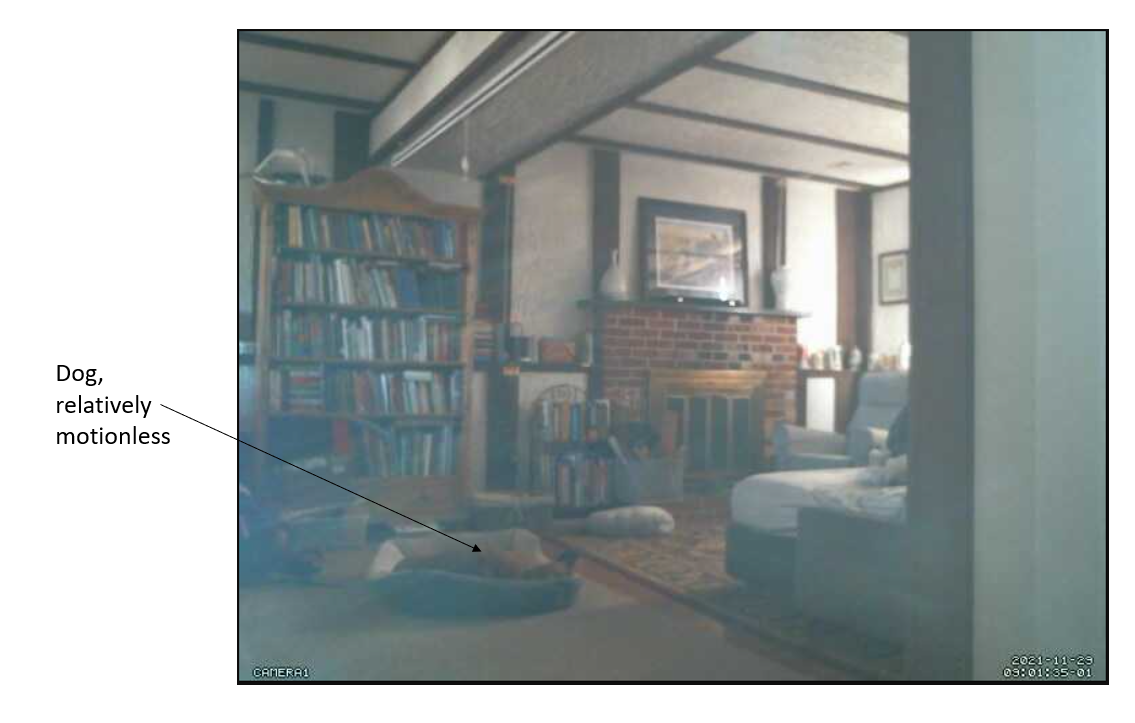

I then tested Motion using several platforms. Motion is installed with the latest RPi images, so the codebase is well adopted and stable. Since I like to operate my devices headless (that is, without installing a monitor and keyboard, but instead remoting into the device), I configured this capability first. Here's a quick tutorial. I then installed/configured Motion NOT as in image, but the program itself (I never could get the slimed down MotionEye OS image to install and work correctly.)
Once everything was running to my satisfaction, I turned on port forwarding on my router so that I could see the livestream from anywhere with a connection.
3. Build telemetry (temp, humidity) using DHT22 (b/c I have several)
My next requirement was to build something that would allow remote environmental monitoring. I have built several weather stations for the backyard, but I could never solve the power problem (operate off a battery, recharge with a solar cell. Once the temps dropped below 40F, forget about it.) Those stations were based on the DHT11 and its DHT22 cousin sensor. Only three terminals used: +3v3, GND, and Data. Data terminal uses a 10k pull up resistor.
DHT11, abt $5

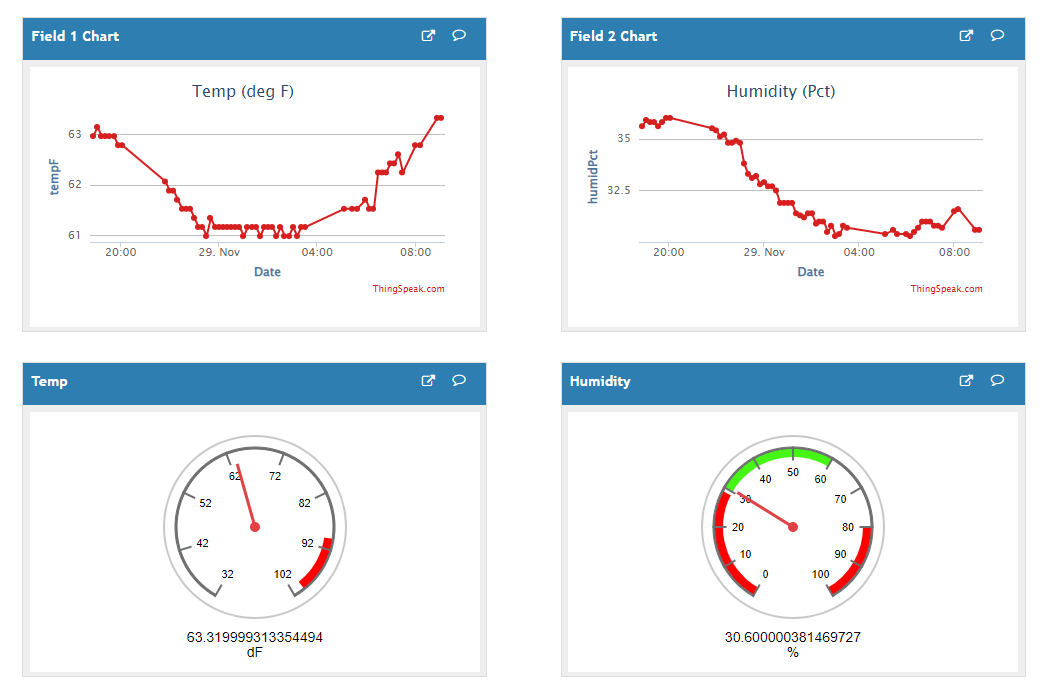

In the past, I've used Thingspeak as my data repository. While several IOT repositories have gone by the wayside in the 5-6 yrs since I've messed with this stuff, Thingspeak/Mathlab is still in the business.
#free account has a limitation of 10 min (60 sec * 10 min) between the updates
time.sleep(600)
4. Combine both apps on a single board
Since the telemetry development was freshest in my head, I decided to use the working Motion program and add telemetry on a single card. I then backed up the card as an image in case of crisis.
The next very important step was to add some type of auto-starting. If the power blipped or went out, I would have no way remotely to restart programs. I tried several code samples, but settled on using .desktop files.
You do not need root-level access to modify your profile's (user's) autostart and .desktop files. In fact, it is recommended that you do not use sudo, as you may affect the permissions of the file (e.g. the file would be owned by root) and make them unable to be executed by autostart (which has user-level permissions).
Open a terminal, and execute the following commands to create an autostart directory (if one does not already exist) and edit a .desktop file for our clock example:
mkdir /home/pi/.config/autostart
nano /home/pi/.config/autostart/clock.desktop
Copy in the following text into the clock.desktop ile. Feel free to change the Name and Exec variables to your particular application.
I started this project in August 2021 as a "next step" following the 40M Pebble Crusher and 10 Minute Transmitter. I needed to bridge the gap between building a transmitter and receiver with an ultimate goal of combining the two. As one would expect, this project, the N6QW DCR, helped me achieve "receiver" status; but more importantly, it provided me further experience in building. Such an experience consisted of building techniques, testing, and troubleshooting. Yes, I changed horses midstride several times regarding technique. This lengthened the project. But each evolution was well worth it in the end.
Lastly, couldn't have done this without the help of several experienced builders. Credits at the end of this post.
My build of the N6 QW Direct Conversion Receiver:
Audio Amplifier
The AF amp was my first focus and first construction stage. Why? Well, Nick Tile (G8INE) and Tony Fishpool (G4WIF) recommended such in their notes. I think Pete Juliano (N6QW) did the same.
I built the AF amp first using perf board. I was very excited by the small footprint and such. But in the end, I could not get the stage to function. Most importantly, I found it very difficult to troubleshoot with the maze of connectors under the board. After seeing Paul Taylor (VK3HN) creating etched PCB boards by hand, I felt that I could definitely do the same. He takes a very simple approach that is easily duplicated.
I found Tony Fishpool and Nick Tile's documentation of Pete Juliano's receiver around the same time that I started etching. I essentially used Tony and Nick's Sprint files for my layout. No need to recreate the wheel. I made some modifications here and there (like adding a voltage regulator to the AF amp). Ultimately, they're designs were very easy to follow.
AF Amplifier (Center)
Mixer
The mixer stage was next. Wiring-wise, this was the mist complicated. I'm still a little surprised that I pulled this one off as I used a SMD version of the 1496 Double Balanced Mixer chip. Tiny is an understatement. Like Paul Taylor suggested, I placed the chip on the PCB and made a little tiny dot at each leg of the IC. I then used a very fine Sharpie to hand trace the circuit:
Mixer Stage Almost Finished (checking off components using Nick & Tony's schematic)
RF Amplifier
I finished the RF amplifier next. After the first few stages, the build started quickening. But I did run into two problems: how do I manage RF and power between the stages? I moved forward while contemplating this ultimately returning the the mixer and RF amp to add SMA connectors to the board. This required a little "manual" etching of the board, but it made for a clean setup.
Regarding power, I used header pins for the +12v power; ground is provided by a really big ground plan on each PCB board and two large boards connected by solder wick. And each stage is attached to the larger PCBs using solder wick. This idea is from Charlie Morris' (ZL2CTM) presentation at the 2021 GQRP convention.
RF Amp Etching
RF Amp Finished
VFO
Not without some frustrations, the VFO was a satisfying build: there's just something about lights and digits showing. I attempted to press an old Arduino Uno and I2C backpack into use. I never learned why and what didn't work with that combo. Instead I bought a few Arduino Nanos and several 16x2 LCDs. Based on the pins on the Ardunio and Si5351, I installed several headers on some perf board. It was just easier for working with the pins. I also had some strange stuff going on with the encoder that I solved by both 1) mounting on a board and 2) properly soldering the connections.
VFO Construction
Band Pass Filter
Probably the most unsexy portion of the build, but arguably pretty important. (Spoiler alert: I got the entire rig going, but had this really loud squeal with limited receive. At Pete's suggestion, I found this was a misaligned BPF blocking the receive and cranking up the AF gain.)
I built the BPF using the number of windings on for the appropriate toroid. I also ganged the caps to get me as close as possible to the value Pete gives in his design. I assumed that it worked having no decent way to text it. To be sure, I have a NanoNVA, but adjusting the screen was so darn hard to use. At the suggestion of Tony Fishpool or Nick Tile (I can't remember who), I used NanoVNA Saver vs. fooling with the NanoVNA proper. Found this to be an incredible advancement.
Here's what the old BPF looked like:
Old BPF peaking at about 6.2 MHz
I confirmed this by bypassing the BPF and finding very little performance increase on receive.
So I rebuilt the filter. I started with an extra winding on L1/L2 (24, I think, which should give me about 2.8 uH). I also removed a few caps and added on some variable caps of unknown range. Truth be told, I just don't trust my meter. Now, Dean Souleles (KK4DAS) suggested that I take a reading on the probes of the inductors and, since I cant tare that reading, account for it in my final read. This seemed to get a lot closer. And that might all be well and good. But I also did this which was both very satisfying and instructive:
I kept the BPF connected to NanoVNA Saver in a constant sweep from about 6 MHz-7.5 MHz
I removed windings, one at a time, and resoldered to the filter board
I monitored the screen and watched the peak move to the right at each change. I then adjusted the var caps to modify the skirts.
I end up removing about three windings (20 total which ought to give me 2.0 uH according to the chart).
This was my final result--bam!:
Here's a summary of my adjustments:
Start
Redesign
·Used T-50-2 (20 turns) vs. T-68-2 (20 turns,
2.28 uH)
·Fixed caps (10pF for the 7.5pF; 22pF + 47pF +
100pF ganged in the tank circuit)
Changed L1
and L2 to 22 turns then test/cut until peak was in center of 40m band
Replaced 10pf
cap with 5pf + 0-20 var cap.
Replaced 22
pF cap inn tank circuit with 0-20 var cap
Replaced the BNC connector with SMA connector
Final Version
Troubleshooting/Evolutions/Lessons
The astute reader will see that this blog's title is "Learning from the N6QW DCR." This was both my purpose of this build and my experience.
After completing the build, these were my results which were "close, but no cigar" on SSB and CW:
The #1 key to fixing this: building by stages and via an al fresco/open design. Again, I used Nick and Tony's tips on troubleshooting (see document 2, Appendix, pg 12).
Given this noise (above), Pete Juliano suggested:
Tune at 100 Hz. I spotted you tuning at 1 kHz and likely your Si5351 is not calibrated and so while you read 1 kHz – that is the command to the Si5351 – the response is OFF because of the calibration. You can tune in the stations better at 100Hz.
The sound quality may be improved by doing two things. The first is get a 100nF cap and solder it across the two outer terminals of the volume pot. Next get yourself one of those powered computer speaker systems and run the output through that.
The signals actually should be pounding in – what are you using for an antenna?
Is the BPF actually passing the 40M band. You might have to squeeze or expand the coil turns. See Bill’s Myth Buster Volume 17
Is the PNP Amp working?
First, I fully detached the pot from the board. I was getting weird stuff going on as I pressed down on the pot, as if I had a bad physical and electrical connection. Now, watch what happened when I added a cap across the outer pot terminals:
I tested the RF amp and the mixer--both were doing fine.
Nick Tile suggested more fixes which I have yet to implement:
The audio noise level only changes in the presence of a strong signal and it sounds to me like the processor working so you may have some noise on the power rails from the Arduino. I put noise filters on the supply lines, I think I used a 1mH choke in series with the line with 100nF to ground at each end on the positive rail into the processor board.
Steve brought something up a few days ago, LM380s can oscillate if pin 6 is grounded, if that is happening, you’ll see it on the o/p if you scope it, and it could be a at a surprisingly high frequency, i decoupled the audio stages pretty heavily on mine and haven’t seen it but it might be a batch/manufacturer dependent issue.
To be sure, there's more that I can do and fiddle with to improve this via trial and error and tribal knowledge. Particularly, I'd like to see if there's a way to more tightly filter out a station that seems to be across all the frequencies within the band pass. Sounds like fun to me.
Lastly, I'd like to give credit and special mention to those who contributed to this project, either knowingly or unknowingly:
The Portable Operations Challenge 2021 took place on September 4th and 5th and the overall winner showed what can be done from a great portable location and using very low power. With just six contacts and running at one-watt CW on twenty metres, Jack Haefner NG2E took out the top spot with a grand total of 615,924 points.
His six contacts were from all around the US plus one that went all the way from his Hogback Mountain SOTA summit W4V/SH-007 in Virginia to French SOTA chaser Christian F4WBN near the French/Spanish border. All contacts took place within 32 minutes of operating, in session two of the contest.
The most efficient contact measured in kilometres per watt used was that same Virginia - France contact with 6,340 kilometres per watt achieved.
So, this year both the overall winner and the furthest km/watt contact title go to one person - Jack Haefner NG2E. WELL DONE Jack!
The number of entrants was a little disappointing. There were only eighteen, far more had been hoped for in this, the second year, of the challenge.
Of those entering however there were a wide variety of power levels and modes both from home and portable locations.
Of the eighteen entrants, fifteen were from the US, two from Europe and one from Australia.
Headed out first thing Saturday AM to catch a SOTA summit. The weather has been so nice here in Virginia--70s and clear--that I just couldn't pass up the opportunity.
I would've loved to operate from the overlook, but wires and other hikers on a rocky summit do not mix. I went back down the approach trail, hung my antenna, and was operational in 15 min.
View from Stony Man Summit
40M was pretty nice. Nothing but 559-599 there. I moved to 20M when calls fell off and grabbed Christophe in the French Pyrenees and two stations in Spain. One of those stations in Spain, EA2IF, was 229, but I could make him out.
Fifteen contacts in about 45 min to include 2 x S2S. I did, however, have a station that I just couldn't pull out. He kept on sending PASWG as his callsign. I definitely was missing a number, but it probably was a Dutch station. Couldn't log it as I couldn't verify the contact. Darn.
QSO Map
Made my way back to the car and was home by 1:15 pm.
One of my Summit-to-Summit (S2S) contacts was AC1Z. Not my first with QSO with Bob Daniels out of NH. What I didn't realize, however, was how many summits he's activated. Look at his log over the past month or so. Looks like he's wandering through the Blue Ridge and Skyline Drive in Virginia. Now that's my idea of what I want to do when I retire....
Great time operating on Hogback Mountain yesterday for the FMH Portable Operations Challenge!! While I hoped/planned to spend several hours on site, I only had about 30 min. I never rank on these contests for numbers of contacts. But I did win second place last here for distance in km per watts.
Here's what I did in 15 minutes of operating on one watt:
That's quite a spread..... And yup, that's Christian (F4WBN) in France at 6266 km/watt. These handful of contacts were all on 20M using CW. Nearly all these stations are regular SOTA "chasers." I know their callsigns well.
Had fun this past weekend working the 13 Colonies Special Event. This is the 13th year running and the second or third time that I've participated.
I participated at first via 20M and 40M voice. There were huge pileups and, well, some rudeness on the bands. It is a time honored practice to 1) listen to what is going on. The op on the other end may call out by numbered call districts, so wait your turn and 2) not tune up on the operating frequency.
With a less than ideal location and antenna height, and since the population of CW proficient operators is smaller than the total of licensed hams, I switched to CW....
Some findings:
1. CW efficiency. CW exchanges are much more efficient than voice exchanges. CALL RST STATE TU. That's it. Maybe 20-30 sec in total. For instance, the op on the other end would call CQ CQ K2X I'd respond with NG2E or DE NG2E. He'd reply with NG2E 5NN TU (5NN short for 599). My final reply would be 5NN VA TU. That's it. See this video taken on the last day of the special event:
2. Operating speed. Even though my comfort zone is14 wpm, I cranked it up to 18-22 wpm. I've never gone this fast. But I can recognize his exchange (my call sign and sig report) at up to 25-30 wpm and, well my part of the exchange is simple. I practiced a little before going live. What a confidence boost!
3. I need to learn how to deal with a CW pileup. I set my rig to operate split 1-2 khz about the operator's listening frequency. All should've been OK, but I was never pulled out of a pileup. Either I mucked up the split or, well, there were so many folks that I was never pulled out.
Way forward. Probably best to ride this wave. Scout the RBN for nearby beacons and some more DX stations that I can hit at a little quicker pace than my characteristic 14 wpm. I'm not crazy about carrying on a conversation about the my rig, my antenna, my medication, and other subjects old hams chat about. Consider me more desirous to get the QSO at a good clip and spare myself the embarrassment. Also should maybe jump into a CW contest and try to work split and get pulled out of a pileup. I pulled Bob Locher's The Complete DX'er out of the bookshelf for tips. And by bookshelf, I really mean the stack of radio books that sit on a shelf by my operating station.
Building this transmitter was a bit of a comedy of errors. Bill Meara, N2CQR, recommended this circuit in my hunt for a transmitter on 12v with a RF amplifier in tow. Bill sent me the schematic, but it took me several weeks to get started. After deciding that I'd like to build this using the Manhattan Technique, I had to find some PC boards. I had a few, but they were cheap--they really shattered when I attempted to cut them down. I was also missing a few parts, of course. And there's also the fact that my time is not my own.
I also credit some delay to trying to visualize the enclosure that would contain this circuit and vice versa. I never solved that last step instead opting to keep the circuit exposed for now. If I get the right performance, I might re-envision the circuit and squeeze it into a circuit for a SOTA outing. I then saw this short vid by the veritable Paul Taylor (VK3HN) which further cemented my plans to spend time to layout the circuit before I melted any solder.
I started by redrawing the layout several times. Doug DeMaw's book, W1FD's QRP Notebook, includes a PC board layout, but I was purposefully trying to layout the circuit mentally and as close to the schematic as possible, limiting my circuit flips and inversions.
Before
After Re-layout
I was then all ready to begin when...who grabbed my crazy glue? Another delay.
To be honest, working with the circuit Manhattan Style was nice. I drew a small grid on the board with pencil in an attempt to keep the circuit aligned during the build.
I spent the week of 21-25 Jun checking and rechecking my layout against the schematic. I even melted some solder here and there. I finished the circuit on Sunday, 27 June. I plugged in the antenna jack and key. I added power and...nothing. Darn. I checked continuity of the ground, transistor pin outs, everything.
I emailed Bill Meara who had these thoughts:
Jack: First, try to isolate the problem by stage: Disconnect the amplifier from the power supply and from pin 3 on the transformer. Now, does the oscillator oscillate? Listen on a receiver. Fiddle with the variable cap C1 as you listen. Also C5. Check the voltages on Q1. Collector should be high, close to 10 volts. Base should be lower and emitter should be about half a volt less than the base. Is the ferrite bead shorting to ground? Some of the connections to the copper clad board look possibly cold. I would re-heat all of them and let the solder flow onto the board. Make sure you have good contact with the enameled wire on your transformers and chokes. It can be tough to get those wires clean. I usually burn off the enamel with a cigarette lighter, then follow up with some sandpaper. Let me know if any of this helps. 73 Bill
As suggested, I separated the RF amplifier from the oscillator. And, boom, we had oscillation. But it wasn't on 7.015. It was on 7.0135. I found that my filter was too narrow and I wasn't looking far enough away from 7.015. I reconnected the amp and the signal moved to 7.014. No problem. We were back in business.
I checked voltage across the dummy load which indicated 2.038v. Given that:
P(watts) = (V + 0.25)2 /25 where V= volts and 0.25 is the RF voltage drop across the diode.
P(watts) = (2.38v + 0.25)2/25
P(watts) = (2.63v)2/25
P(watts) = 0.27w
A quarter of a watt is a little lower than I thought. I hoped to get 1/2 watt out of this. NP. But the signal was very clean. I checked on the scope and found only one small harmonic. A near perfect sine wave.
Here's the video:
Here's what it looks like on the Reverse Beacon Network:
14db into NY; 7 db into OH (270mi)
Final board. Note cardboard under the ferrite bead to prevent shorting to ground. Alligator clip on transistor as a heat sink...but I can still smell that I'm roasting the transistor....
I had such a great time participating in the ARRL VHF Contest this past Saturday and Sunday. As was my habit, I headed out to Hogback Mountain on the Skyline Drive. Hogback Mountain stands at a little over 3000 feet and has a good view of New England to the N/NE and Pennsylvania to the N/SW:
Hogback Mountain, FM08
My approach to this contest is laid back. In fact, the June VHF Contest is the only contest series that I participate in. (There is also a September and January segment. September starts to get in the way of hunting and, well, January is pretty cold on a mountaintop.) Since I'm casual about this, I really only use one Yagi and the FM vertical on my Jeep. Also new this year was a significant amount of QRM from neighboring operators. We'd step on each other every time we were operating the same band. We then decided that we'd not call CQ and hunt/pounce instead. Hunt/pounce worked, but it did reduce log entries.
Spring on the Skyline Drive
The Shenandoah Valley, Virginia
Equipment. My equipment was a little different this year. I blew out my IC-7000 to years ago; I replaced the same with an Elecraft KX3 using a Dual Band VHF/UHF Transverter made by UR3LMZ. All my SSB contacts were at 8W. (Note: next time I'll reduce power further to 5W and go for the QRP category.) I also used my vehicle mounted Kenwood TM-D710GA for most of my early FM VHF contacts. I then used the KX3 for both VHF and SSB. I know, I know: my Yagi is clearly horizontally polarized. Still, I made plenty of FM contacts with little degradation of signal. Besides, the FM contacts were local.
Elecraft KX3 with Upverter
My setup on Hogback. Flagpole holder, MFJ-1910 mast...and cooler.
Challenges/Observations.
I heard very little CW on the bands. I heard none--zip, zero--on the designated frequencies of 144.000-144.100 and only scant QSOs in the 144.200-144.300 range. I only made two or three CW QSOs myself.
Once I started operating primarily from the KX3, I found that moving between bands/freq tiresome. Next time I'll add the following to memory before going to the field and make sure I know the procedure for doing so in the field:
144.100 (2M CW Calling/start of band)
144.200 (SSB 2M Calling Freq)
146.520 (2M Simplex Calling Freq)
420 (70cm CW Calling/start of band)
432.10 (SSB 70cm Calling Freq)
446.00 (70cm Simplex Calling Frequency)
Future Plans/Expansion
I normally operate as a limited Rover. This means that I must transmit and make contacts from more than one grid. I normally spend all afternoon on the first day of the contest on Hogback Mountain. I leave soon after dark so that I can see the sunset:
Sunset from Hogback
Illuminated Clouds from Hogback
On day two/Sunday, I go to Mass then normally park on the top deck of a parking garage in FM18 for a few calls to qualify. But this plan was impossible this year. The amount of RF pollution and new buildings invalidated this plan. I made a few contacts on FM, but that was it. For future contests, I will forgo parking garages and go a little farther to either Bull Run Mountain or Mount Weather.
If I feel ambitious, I may add a 430 MHz Yagi similar to my 2M Yagi. I can stack the two on the same fiberglass mast and use a switch to go between the two. I also have a 6M Moxon that I built that I could press into service, but this might need it's own mast. It also doesn't breakdown so easy for the back of the jeep.
Nice photo, but made zero QSOs on SSB with KX3 and Yagi. Made two QSOs on FM using Kenwood TM-D710GA mounted in my Jeep. Remainder of the QSOs made from my home.
Results. At the end of the day, I made 55 QSOs from FM08 and FM18. All but four QSOs were from Hogback Mountain. Best QSO: W1VD, Burlington, CT (363 mi) on 8 watts USB. A personal best. Hogback Mountain (elev. 3000') sure helps.
The ARRL VHF/UHF Contest is next weekend. I'm reading my equipment in between chores. Crimped some shorter LMR-400 Max (started with 2', down to probably 19' now that I screwed up a section). I'll probably operate as a "rover." Like the last few years, I'll spend a majority of my time in FM08 on the top of Hogback Mountain along the beautiful Skyline Drive. Nothing like pulling an all-nighter hammering out some Morse Code like the fate of the free world rests with me and my trembling fingers. I'll follow up the next day from home after Mass (grid FM18) to fully qualify as a rover.
Since I fried my IC-7000 last year, I'll be operating FM using my Kenwood TM-D710G in my Jeep. It will beacon my position via APRS. New this year: I will operate a VHF/UHF using transverter on my Elecraft KX3 by Alex Shatun (UR3LMZ). Will also have a small VHF Yagi with me as well. This should be plenty fun.
While I'm making judicious use of my junk box for parts--parts salvaged from garbage picking old TVs and stereos years ago--I still am short some basic components for my basic builds...mostly QRPp transmitters.
Bill Maera (N2CQR) of Solder Smoke Podcast fame to the rescue! While I have many of these parts from various grab bags, there are some more unique items that will require a trip over the the Mouser,All Electronics, Jameco, or Digikey website:
Transistors
2N2222 (have a ton of these and 2N3904s from previous grab bags)
Toroids. (Funny story. I bought several T37-2 and T-37-6 through Kits and Parts, but I really didn't know until reading the winding data that I needed just a few more of different sizes and composition.)
Looking through an older book called W1FP QRP notebook, the author indicates that an aspiring builder ought to have some miniature ferrite beads to place on the base of the amplifier transistor to prevent VHF oscillation and VHF harmonics.
I want to add a little more flexibility to my building methods. I've been using these 3x3" squares of perfboard that I found in my junk box, but I want to spread out my circuits more. I'll probably never approach the work of the Manhattan Build Master, Dave Richards (AA7EE), I ought to give it a go. This requires some supply of copper clad board. The boards in my junk box shattered when i tried to cut them to a reasonable size. Bill suggested I follow Pete's advice and buy CEM 1 boards on eBay. CEM1 is low-cost, flame-retardant, cellulose-paper-based laminate with only one layer of woven glass fabric.
Ordnung macht Spaß
While I've only built a few small circuits thus far, I found myself expending a lot of time trying to see what I have in stock for the next build. It became obvious that I would end up spending significant time hunting for parts in a box labeled "resistors" or "capacitors"--time that should be devoted to building, experimenting, and enjoying the fumes of some 60/40 solder. While it took the better part of an afternoon, here's the fruits of my labor. A significant time saver.
